D1 & D2 Length Regs

[Heat Kent]

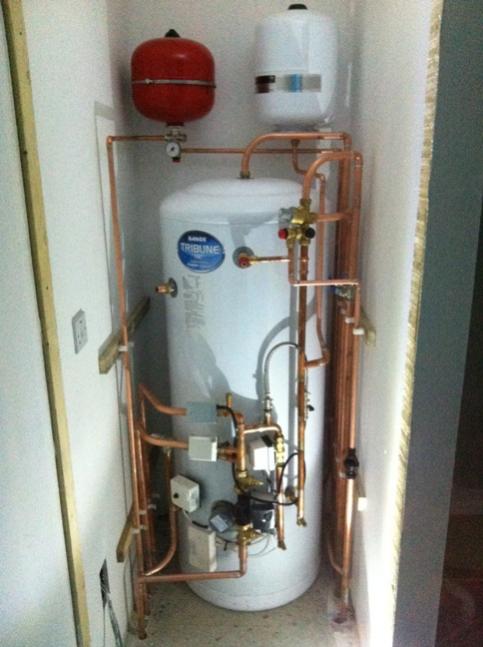

This is a cylinder I did about a month ago – But are D1 & D2 acceptable? I got thinking about it after reading another post last night, so I did a little research. Does the minimum of 300mm before a bend apply to D1 as well as D2? I also have 2 elbows in D1, so what length of pipe does an elbow account for?

To put it right would I just need to just cut D2 under the clip and solder it back on under the tundish with a coupling or do I need to cut it up by the temp valve and extend the pipe work to the first elbow too?

I just want to say thank you to everyone on the forum for being so helpful, I’m learning loads of new things and building up a useful folder of specific regulations.



One in my folder http://www.stockport.gov.uk/2013/2994/developmentcontrol/14406/45614/019sanitation



[Howsie]

D1 too long and also seems at an incline from the PRV. As to the D2, how far is the run outside and how many elbows? Btw, what's tee'd into the D2 near the floor?



[Heat Kent]

There’s no incline on it, could just be the angle of the picture with the elbows? Goes into 22 from the tee (which picks up the 15 out of the red heating expansion vessel) elbows under the floor into a 2m straight length to the external wall, elbowed down, elbowed out and caged down low.

Do you know how much of my length allowance is taken up by each elbow? Also can I put elbows that close to the valve?



[Howsie]

No worries. Looks like a slight incline in the pic. re. the lengths, It's all in G3 and usually the MI's. you should know these if you're fitting UV cylinders.



[dancinplumba]

I was going to say that as well sean, he should know before doing the job



[AWheating]

would have been better the to run the blow off from the heating seperate. Its safer and better than many unvented cylinder installs you see.



[josh]

9m max in 22mm including allowances for fittings (add 0.8m for a 22mm elbow)
I normally allow the same for bends even tho i read somewhere you add slightly less.

28mm is 18m including fittings (add 1m for every 28mm elbow)

If you were over the 9m and had to upsize it, it should be upsized from the tundish.

Double check but i think thats right.
Hope that helps.
Looks like a good job by the way



[Howsie]

Looks like a good job?



[lbp plg & htg]

Tundish - 500mm from T&P, thats all folks.



[josh]

Looks like a good job?

Theres a lot worse out there



[chris watkins]

The Maximum length of the D1 is now 600mm & there is no limit to the number of elbows that can installed on it. (how many could you fit, LOL)
How long ago did you do your Part G, Heat Kent ??

Hope you insulated all that nice copper, in & out of the cylinder (or at least for the first Metre) ??



[Heat Kent]

Someone has already pulled me up on another post RE qualifications:

I don’t hold any qualifications….. However, what do you class as an installer? Presumably a qualified installer can be assisted by an apprentice? What percentage of the work would need to be carried out by the apprentice before he is considered the installer? If I put the cylinder in and pipe it up then a qualified person checks it, we fill up together and a commissioning guy comes round after us to commission it, then surely that’s safe? It’s not like I go out installing these (or anything for that matter) on my own in private dwellings.

Honestly, before this week I was unaware of any building/water regs and just joining in on the forum is really opening my eyes. I have been doing site work for just under a year and start my 6 week NVQ2 in March, I wanted to get a bit of experience before doing the course rather than doing the course and then looking for a placement like all the other career change guys do.

In light of things highlighted to me on the forum this week, I’m going too call the training centre tomorrow and tag these two on the back of my course. I won't be back on site work before my course, so the world's safe for now
