Drip from Filling Loop

[papeman1]

Hi folks,

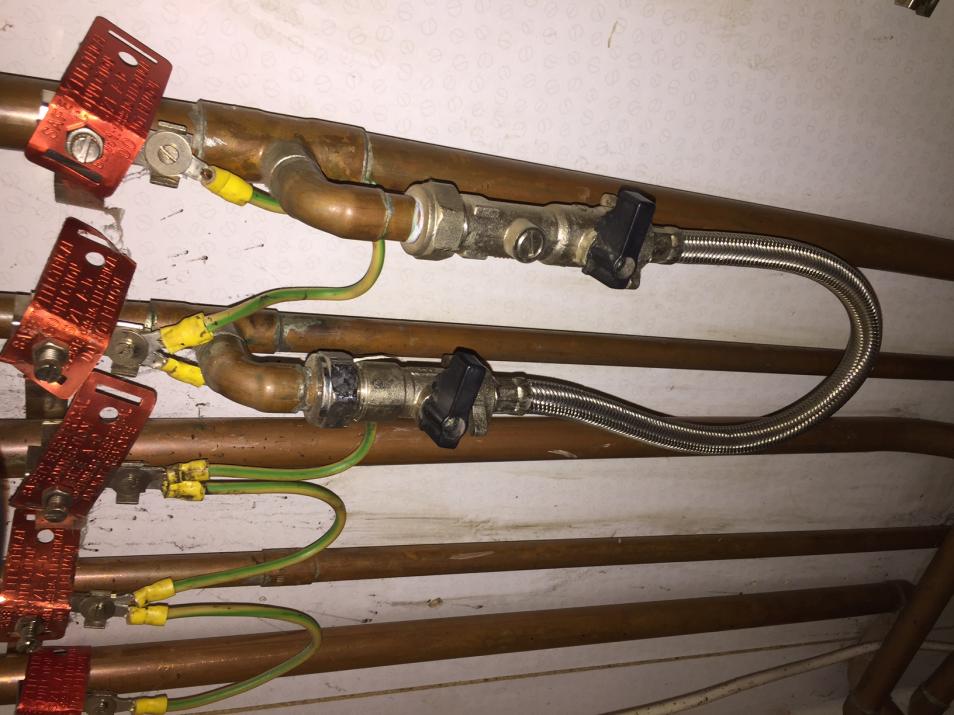

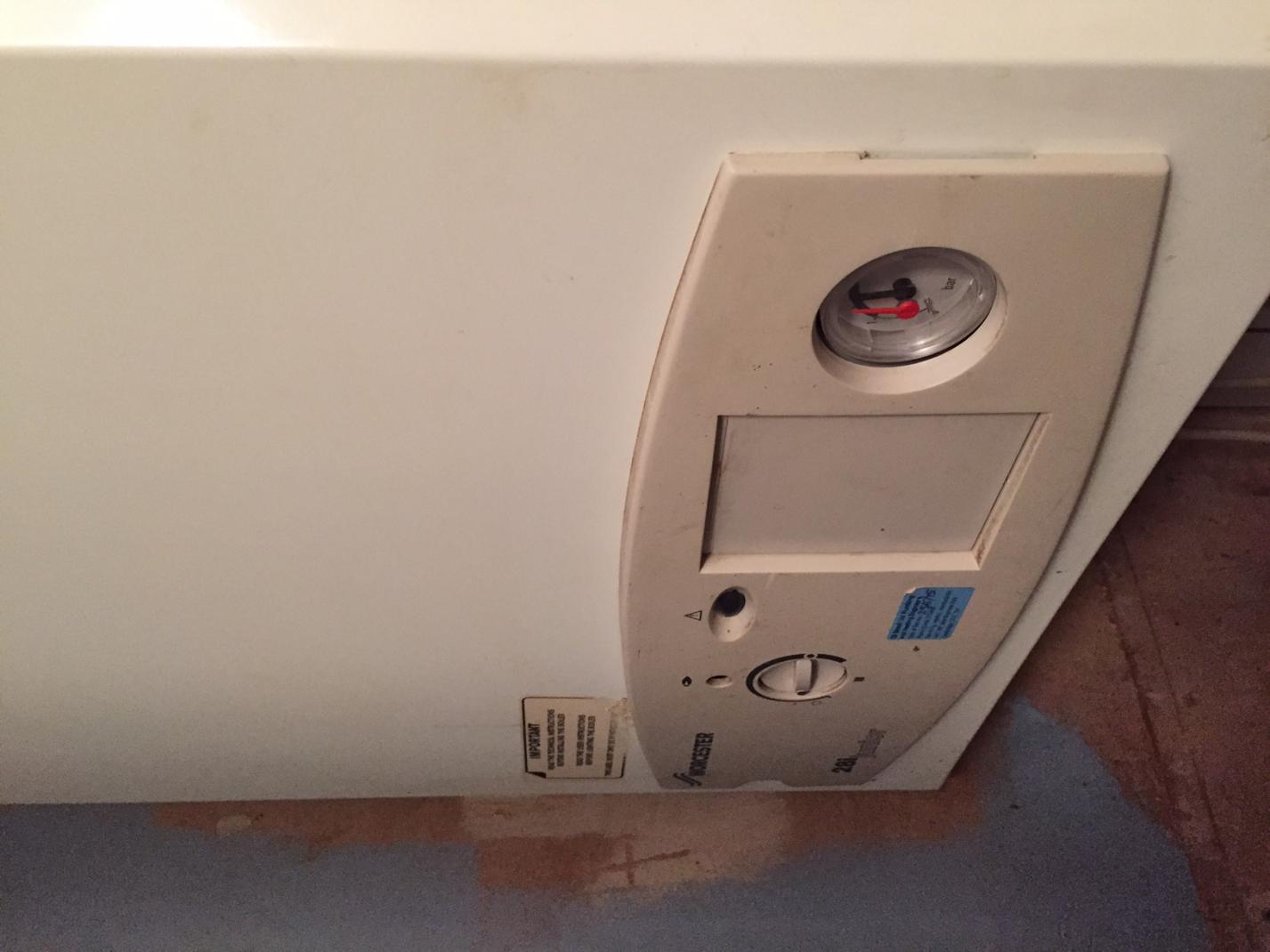

Just bought a new house and for the first time, have my very own boiler! However......the filling loop has a drip coming from the "in" pipe by the looks of things. From what I have read so far, it seems to be a relatively easy fix, and with my boiler service not for another 6 weeks, thought I can do it myself. So, to test my knowledge, could you confirm if I have the right idea?


1) Switch off mains tap
2) Run kitchen tap until it goes dry
3) Disconnect current filling loop (assume it is the nut over the valves?)
4) Install new FL (anyone know what type I have?)
5) Switch on mains tap
6) Cross fingers
7) Repressurise boiler


Did I miss anything out?


Ta,


Chris



[ShaunCorbs]

drain the heating system down but other than that yes



[papeman1]

Is there a particular way to do that, or just a case of running the water out of the radiators until dry?



[ShaunCorbs]

Is there a particular way to do that, or just a case of running the water out of the radiators until dry?

you can disconnect the filling loop cold water side and open the heating side into a bucket might need to empty the bucket a few times but should be fine



[joni os]

No need to drain system. Sealed system will create its own vacuum once pressure is released.
With water main off and boiler cool, disconnect left side of flexible, the one that comes off 15mm cold feed.
Point hose to bucket and open both valves. If non return valve stops water coming out, disconnect flexible part of hose and push small screwdriver into valve to release water. (Alternative is to take water out via air vent on radiator or system drain down point.)
Keep nuts and olives on copper pipes as these can normally be reused.
With new fill loop, orientate non return valve to fit directly off cold feed, this will allow an easy way to release pressure in future. To maintain vacuum only have system open at one point, ie close air vent/ drain down. before completing work.



[papeman1]

Thanks folks, really helpful. Only pain in the rear is that the stop tap is behind the blooming washing machine which is a tight old fit. Hey ho



[PlumbBobBob]

you could think about fitting a surestop after the stopcock then you wouldn't need to pull the washing machine out



[papeman1]

Ok, so new loop on. Only thing is that the connection to the mains cold water tap went on very easily. It's not loose, but a sharp tug and it'll come off. What can I do to secure it, or should it just push on?



[ShaunCorbs]

Ok, so new loop on. Only thing is that the connection to the mains cold water tap went on very easily. It's not loose, but a sharp tug and it'll come off. What can I do to secure it, or should it just push on?

Should have a nut and olive, and the olive compress onto the pipe once tight so shouldn't come off

Is it leaking ?



[papeman1]

Don't worry, I'm a di*k. Didn't realise I had to tighten the nut further once on the pipe. All sorted and seems to be running fine. Thanks to all for your help. Even managed to get the washing machine back in, albeit will have to move again when they come to install the water meter....
