Discuss Rayburn 480k MX - Boiler will not ignite in the Oil and Solid Fuel Forum area at UKPlumbersForums.co.uk.

  1. Gone-on-John

    Gone-on-John New Member

    My Rayburn has been working well for ages and although old it is regularly serviced. Now it has decided not to fire up on the boiler side, cooker works fine. I have had my usual engineer look at it but he has not been able to find the problem and says it is beyond him. The thing that I think should narrow down the cause is that the lock out light on the control box does not come on when the boiler fails to ignite. We have changed the control box but this has made no difference. Any ideas?


  2. SJB060685

    SJB060685 Top Contributor!!

    Does the fan come on for pre purge or is it completely quiet?

  3. SimonG

    SimonG Trusted Plumber

    Follow sequence of ignition to give pointers of where issue arises.

    • Like Like x 1
  4. SimonG

    SimonG Trusted Plumber

    Oh and i don't rate your usual engineer if something like this is 'beyond' him.

    • Like Like x 1
  5. SJB060685

    SJB060685 Top Contributor!!

    That’s what I’m heading too, however he says a new Control box didn’t do anything either, hence why I asked what I did. He might not be getting any feed to burner at all.

    • Agree Agree x 1
  6. Gone-on-John

    Gone-on-John New Member

    Thanks SJB. The fan is running but I do not think the pump is this is why I initally thought that it was the control box.

  7. Gone-on-John

    Gone-on-John New Member

    Thanks for replying Simon, Yes, my engineer probably has not done enough courses on these models but at least he told me it was beyond him before he messed up too badly and still gave me a call out.
    If you can see my response to SJB. the fan seems to kick in but I do not think the pump does.

  8. SJB060685

    SJB060685 Top Contributor!!

    If the fan is running the pump IS spinning but might not be providing pressure. This is basic fault finding to be honest. Pressure needs to be proved, as does solenoid and stem function, electrode sparking and nozzle atomisation. Fair enough your guy said it’s out of his depth but I would get another engineer in to find and rectify, a decent engineer will find and fix on first visit as they should have most parts as van stock. Replacing anything in the hope to fix is a sign of a bad engineer.

    • Agree Agree x 1
  9. Gone-on-John

    Gone-on-John New Member

    Thanks, My wife is pressing me to do this. I will see if I can find a more qualified engineer, although around West Somerset they seem a bit thin on the ground. - John

  10. MikeJhn

    MikeJhn Active Member

    I don't know if its just me, but if the cooker is working fine then the burner is operational, IMO your fault is in the Rayburn not the burner, could be a faulty boiler thermostat, my own Rayburn (solid fuel) has a mechanical flap that operates between the boiler and cooking zones that cuts off the heat path, I assume yours may be electronically operated and may be faulty.

  11. SJB060685

    SJB060685 Top Contributor!!

    Hi Mike. My knowledge of the PJ burner is good but I’m not to familiar with these twin PJ cookers. Do these burners have a separate pump for each burner or a shared pump?

  12. SimonG

    SimonG Trusted Plumber

    Twin burners, as far as I'm aware.

    • Informative Informative x 1
  13. SJB060685

    SJB060685 Top Contributor!!

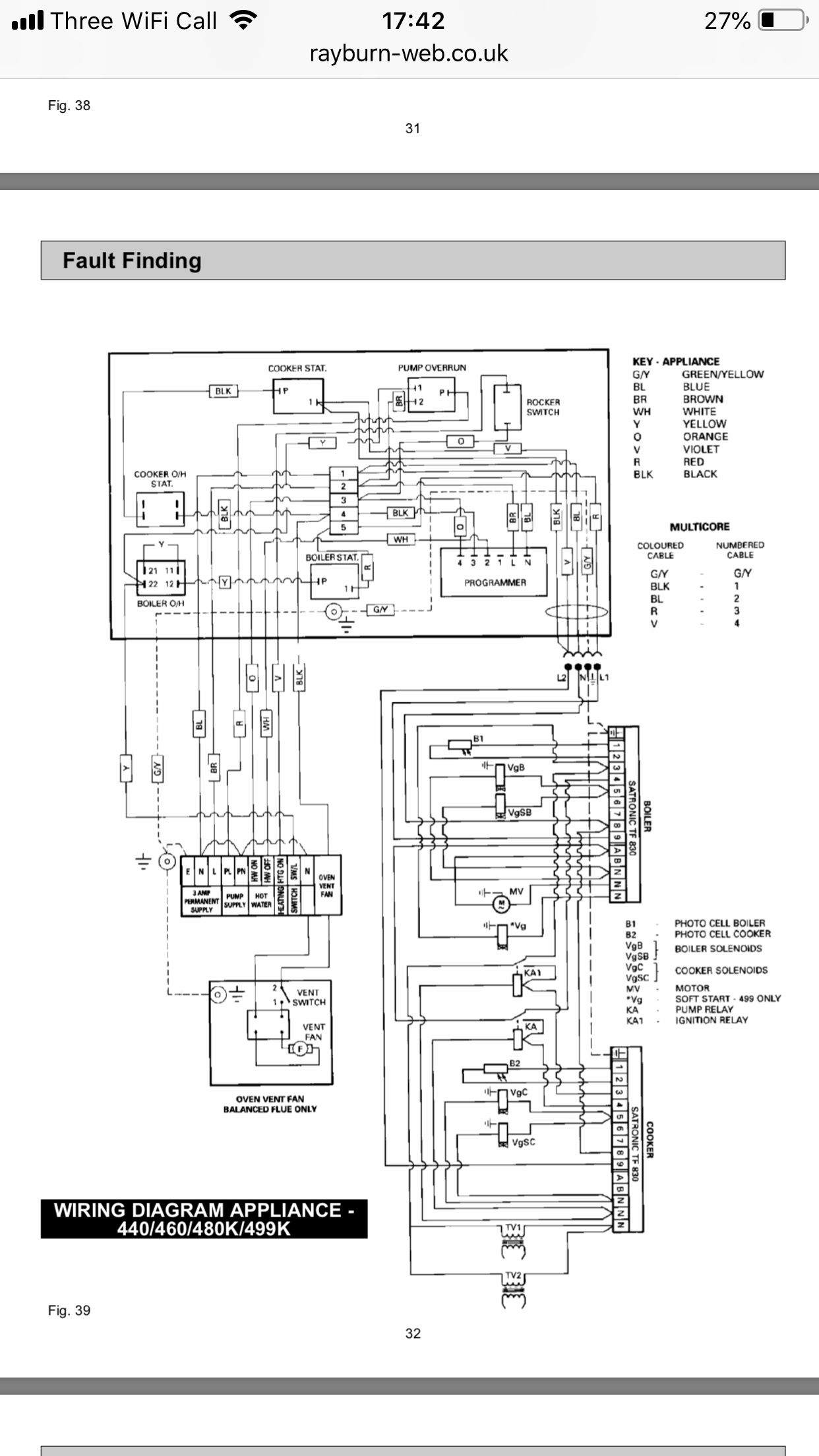

    I’m looking at Rayburn 480k manuals online and I’m seeing what appears to be a single pump with one pressure setting feeding two supply pipes (cooker and boiler) although there are various burners used over the years. I’m just seeing if our collective minds can help the OP narrow down his search. Now if it’s a single pump and the cooker is working fine we can rule out a fuel flow problem, drive key, pump coupling or gear set worn. Now I would check voltage to solenoid and solenoid function at the 12-14 seconds mark (whichever the control box used time sequence is) . If ok I would consider a blocked nozzle or possibly pressure pipe to nozzle (although I’ve not seen the latter personally) . Some burners have a NRV before nozzle and I have known them to block (again unsure if there is one). If ok then it’s down to ignition or air. Could be a faulty ebi, dirty electrodes, broken down HT leads etc. What would help and I’m not sure if possible is for the OP to post a video so the trained eyes and ears can get a better understanding.

    Edited: One thing I didn’t mention was the possibility of the cell detecting stray light during pre purge or faulty cell signaling the box of stray light, which would prevent burner from even trying to ignite.

    Last edited: Feb 17, 2019
  14. MikeJhn

    MikeJhn Active Member

    Ah did not know they had a twin burner.

  15. Gone-on-John

    Gone-on-John New Member

    Yes 2 burners one pump, pump which has only recently been replaced as was noisey however suspect it was fan between that and motor which was making noise as greatly improved with spray of silicone lubricant. I have swapped the solenoids between sides and all seem to be working. Would the control box light not come on if it was something as simple as a blocked nozzle. I could swop those over to check if both burners take the same nozzles. I tried firing it up this morning as I recall there was a problem that both burners would not run at the same time, if you tried the second would cut out the first. Anyway when I tried the boiler this morning even the purge fan did not start up. Cooker is still working fine. It has almost become a mission for me now to solve this problem. Thank you all for your help.- John
